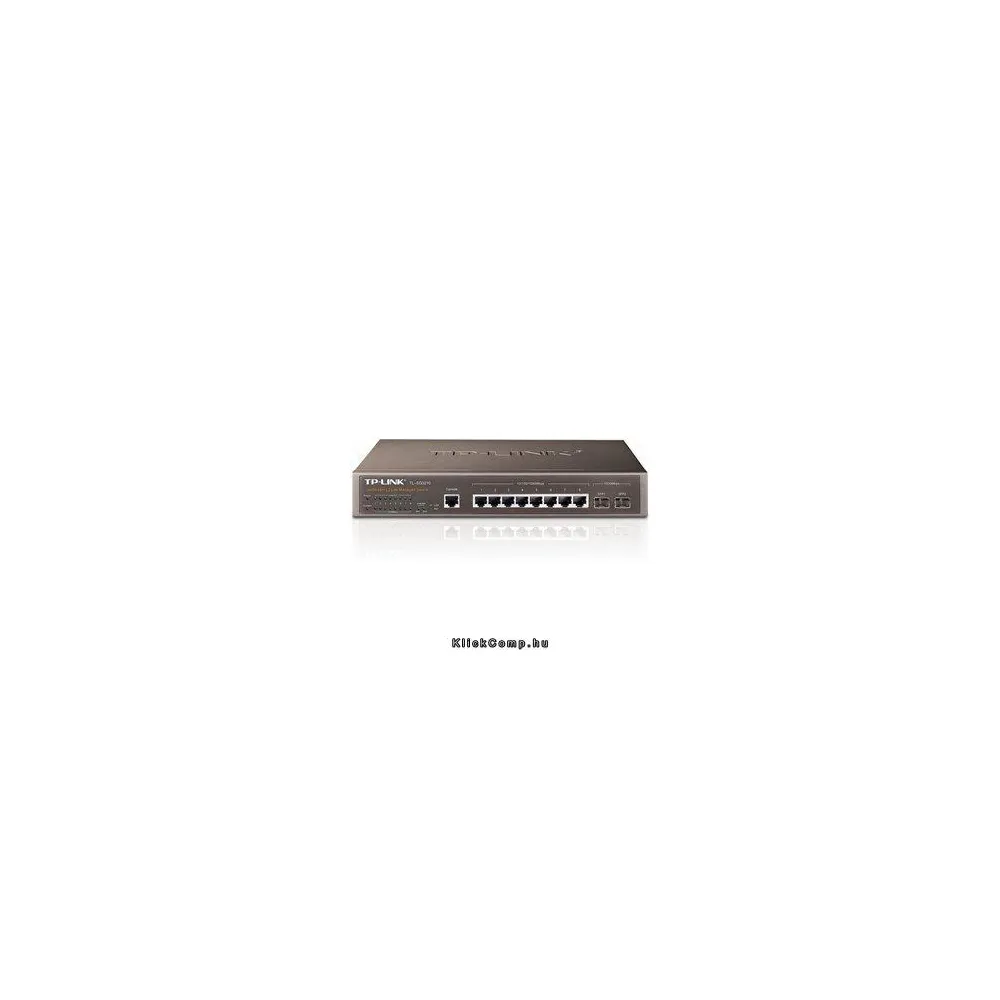

8 port switch LAN 10 100 1000Mbps, 2 miniGBIC menedzselhető r

9 portos Pure-Gigabit managed switch.
Sok szabvány támogatása: IEEE 802.1d, 802.1x, 802x.1Q, 802.1p, IGMP Snooping, SNMP stb.
Portonkénti bemeno / kimeno forgalom szabályozása
SNMP, WEB-alapú, telnet, konzol menedzsment.
8x 10/100/1000 Mbps UTP/STP RJ45 port (auto MDI-MDIX)
1x SFP sín MiniGBIC modulokhoz.


Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x, SNMP
Basic Function MAC Address Auto-Learning and Auto-aging
Storm Control (Broadcast, Multicast, Unknown unicast)
Port Mirroring
IGMP Snooping
MAC Address Table 8k
Switching Capacity 18Gbps
Transmission Method Store-and-Forward
Priority Port based Priority
IEEE 802.1p based Priority: 4 Queues
IP DSCP based Priority
Link Aggregation IEEE 802.3ad LACP Link Aggregation
Spanning Tree IEEE 802.1d Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.1w Rapid Spanning Tree
BPDU Filtering
VLAN Port Based VLAN
802.1Q Tag-VLAN
GARP/GVRP
Management Access Control Based on Port
Based on MAC
Based on IP
Based on VLAN
Based on LAG
Security & Authentication Port Security
Static MAC Address Binding
802.1x port based Access Control
RADIUS
TACACS+
Network Management Telnet, CLI/Console, SSH v1/v2
Web (Http/Https), SSL
SNMP v1/v2c/v3
SNMP MIB-II, Ethernet-like MIB and Bridge MIB
RMON statistics, history, alarm and event group
System Function Fixed IP Address Setting
VCT (visual cable test )
System Log
Port Flow Statistics
TFTP Upgrade
