Star TSP100-II ECO POS nyomtató Blokk-Nyomtató, vágó, USB, fe

150 mm/sec.; USB 2.0; 58 / 80 mm; Gyors, energiatakerékos thermo blokknyomtató beépített tápegységgel és automatat vágóval, Windows, Linux és Mac rendszerekhez.

Star TSP143ECO-G gyártói weboldal

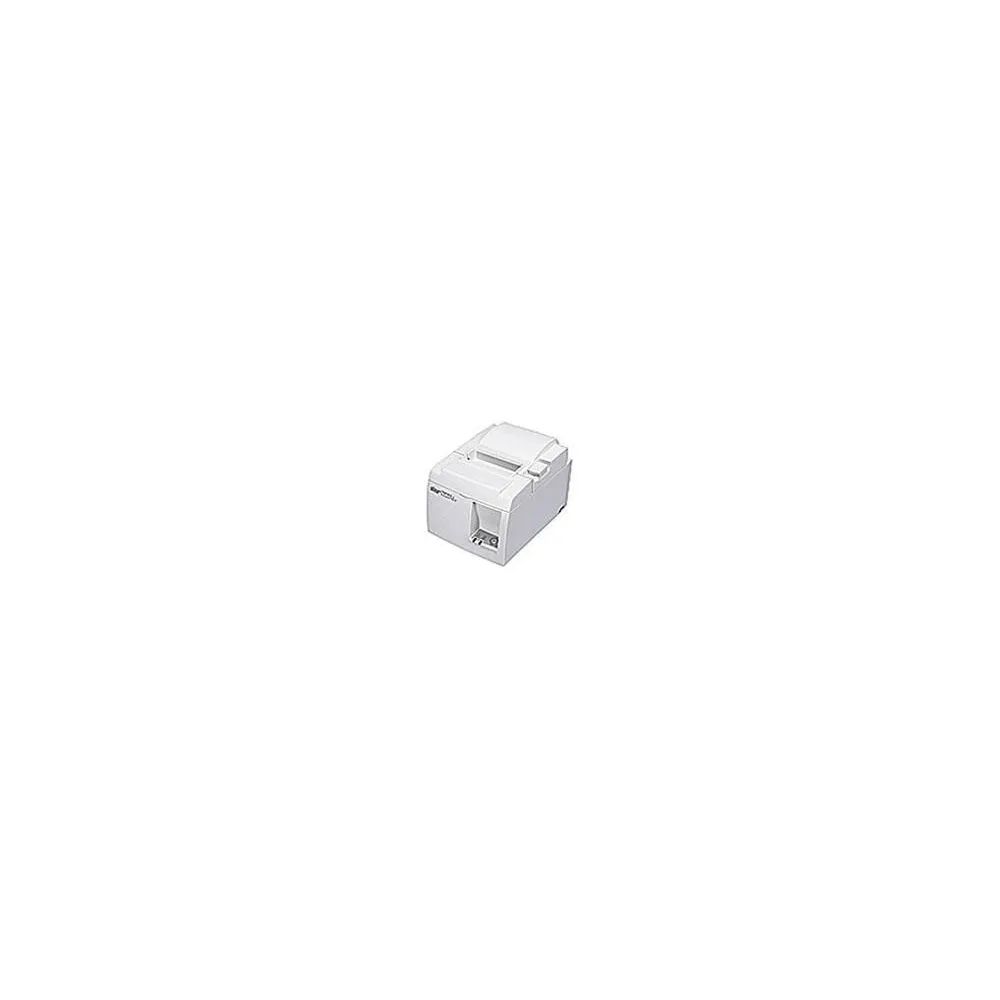

Star TSP143ECO-G

SPECIFICATIONS - TSP100 futurePRNT Series

Printer Method
Direct Line Thermal

Print Speed
22 RPM (Receipts Per Minute)

Printer Case Color
Putty or Gray

Models Available
Tear Bar or Auto Cutter

Print Resolution
203 dpi (8 dots per mm)

Two Color Print Capability
Red & Black / Blue & Black / Green & Black (Two color thermal paper required)

No. of Columns
Star Mode = 40, ESC/POS™ Font A 42 Font B 64

Font Size
12 x 24

Character Set
ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages
Star Mode=40. ESC/POS™= 10 + 1 blank allowing an additional character page to be added

Bar Codes
Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing
3 mm or 4 mm or programmable

Paper Specifications
Width
80mm standard, 58mm with paper guide

Thickness
0.065 ~ 0.085 mm

Roll Diameter
Up to 83 mm

Easy-Load
"Drop-In & Print"

Paper Out Sensor
Standard

Paper Low Sensor
N/A

Maximum Print Width
80mm paper = 72mm, 58mm paper = 50.8mm

Top Margin
11 mm minimum default

Auto Cutter
Guillotine (Partial Cut Only)

Cover Open Sensor
Yes

Logo Store Capacity
Unlimited

Multiple Copy Support
Supported through futurePRNT Software

Journal Capability
Supported through futurePRNT Software

Label Support
N/A

Power Supply
Internal with power cable supplied (not available on the TSP100PUSB; requires optional PS60A external power supply only when using standard Full Speed 2.0 USB cable)

Drivers Available
Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, CE, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK

Digitally Signed (WHQL)
Yes

Swappable Interfaces
N/A

Connectivity
TSP100U
USB 2.0, Full Speed with cable supplied

TSP100LAN
Ethernet (10/100BaseT, UTP) with cable supplied

TSP100 Powered USB
Combined Power and USB cable version with Powered USB cable supplied

Virtual Serial Port to USB
Supported through futurePRNT Software (TSP100, TSP100PUSB, TSP100LAN)

Virtual Serial Port to LAN
Supported through futurePRNT Software (TSP100LAN)

Emulation Modes
Star Mode, ESC/POS™

Peripheral Drive Circuit
2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption
Average 1.6 Amp. Printing, 0.1 Amp. Standby

Operating Conditions
Temperature: 5oC to 45oC
Humidity: 10% - 90% RH (without condensation)

Storage Conditions
Temperature: -20oC to 60oC
Humidity: 10% - 90% RH

Dimensions
142mm(W) x 204(D) x 132(H) mm

Weight:
Auto Cutter Models
TSP143U - 1.73Kg, TSP143PUSB - 1.53Kg, TSP143LAN 1.72Kg

Tear Bar Models
TSP113U - 1.56Kg, TSP113PUSB - 1.37Kg, TSP113LAN - 1.56Kg

Safety Standards
UL, C-UL, TüV, FCC, VCCI, EN55022, CE

Reliability MCBF
60 Million Lines

Print Head
100km

Auto Cutter
1 Million Cuts


Accessories ALL Included with Printer
Installation CD with Drivers and futurePRNT Receipt ReDesign Software, Wall Mount Bracket, Auto Reverse Text Output Software, Vertical Mount Accessory, 58mm Paper Guide, 6ft Interface Cable, 6ft Power Cable, Power Switch Cover
(Power Cable not included with PUSB versions)

Options
Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
