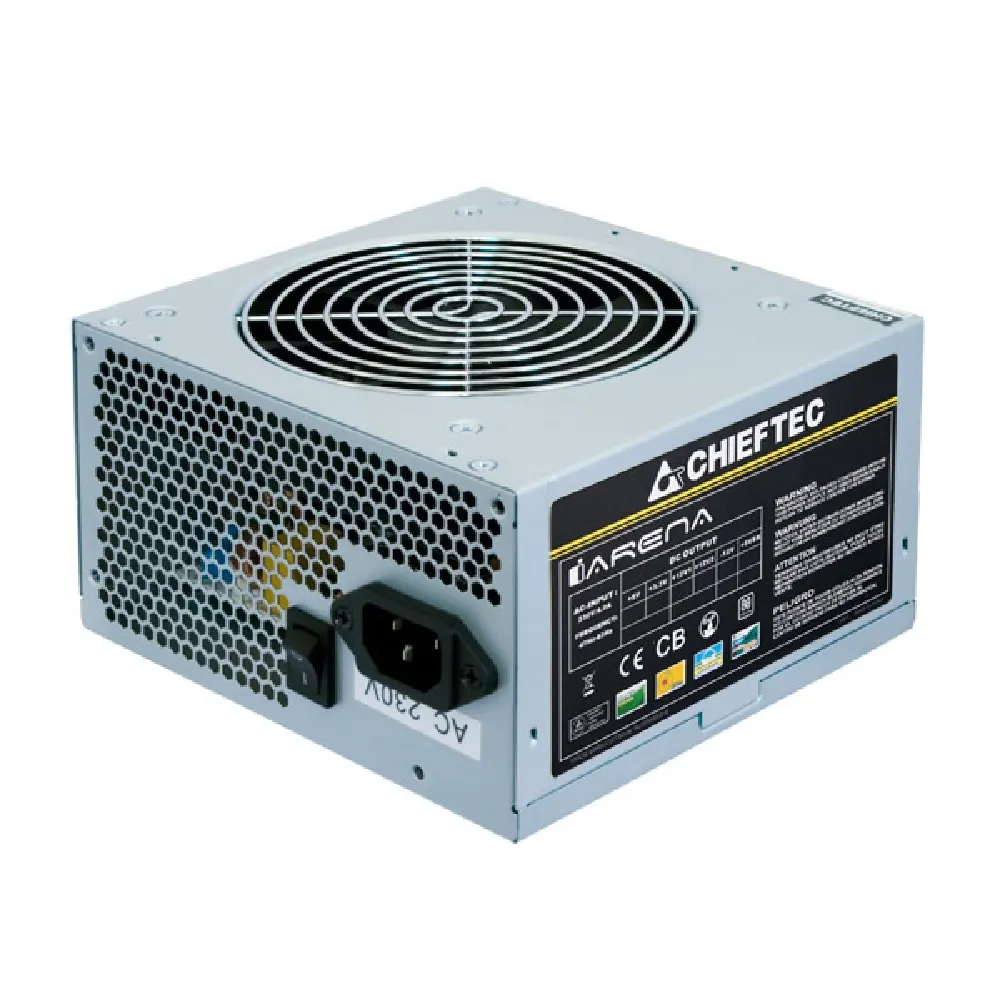

Tápegység 400W 12cm PFC 80+ Chieftec iARENA
Technikai Specifikáció, műszaki Info :
ATX 12V, 140mm x150mm x87 mm, 120mm silent fan, UVP,OVP,SCP,OPP,OCP,OTP,AFC, Maximum Load: 400W
Specification: ATX 12V 2.3
Form factor: PS II
Wirkungsgrad: >80%
Dimension (DxWxH): 140 mm x 150 mm x 87 mm
PFC: Active PFC (0,9) (only 230V)
Fan dimension: 120mm silent fan
Security:
UVP (Undervoltage protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
OPP (Overload protection)
OCP (Overcurrent protection)
OTP (Over Temperature Protection)
AFC (Automatic Fanspeed Control)
AC Input: 230V / 4A
Frequency: 50 Hz
+5V: 18A
+5V & +3,3V combined: 120W
+12V 1: 18A
+12V 2: 17A
+12V 1 & +12V 2 combined: 336W
+12V 3: N/A
+12V 4: N/A
+12V 3 & +12V 4 combined: N/A
P.F.: >0,9
-12V: 0,3A / 3,6W
+5VSB: 2,5A / 12,5W
Maximum Load: 400W
