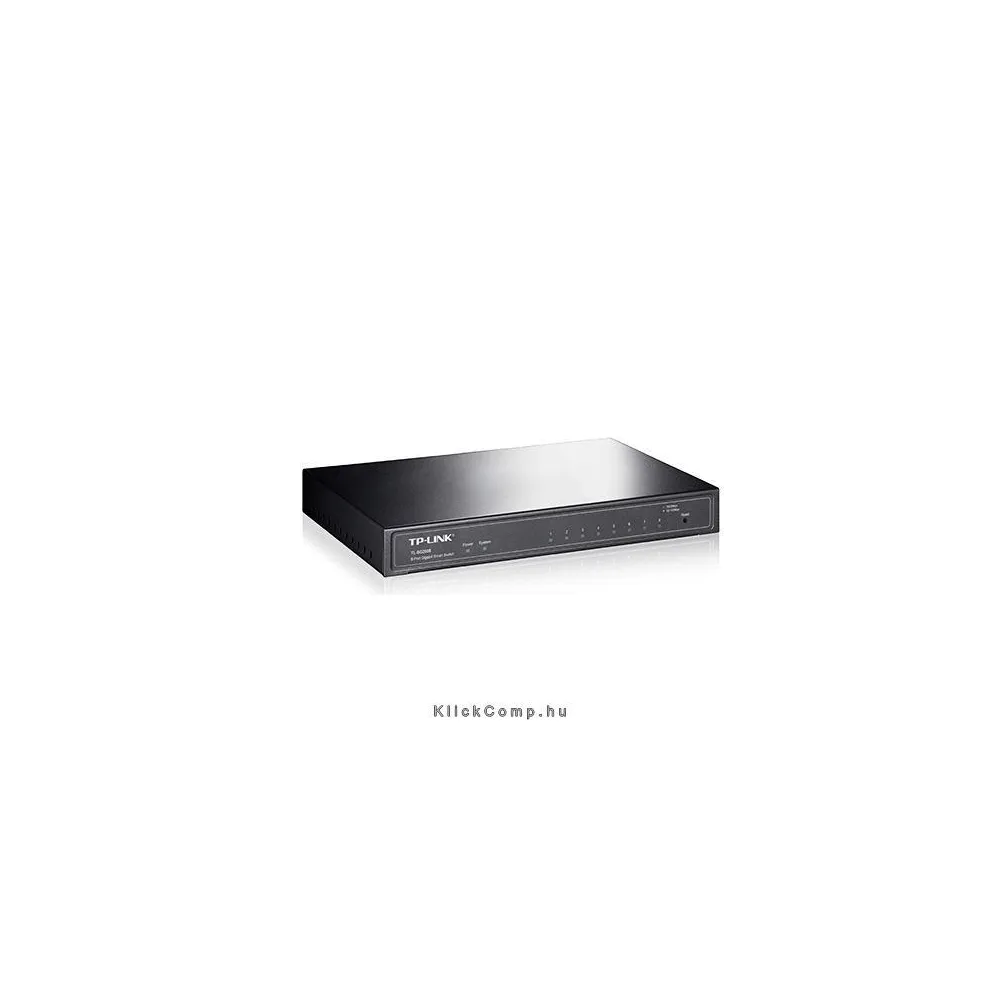

8 port Switch 10/100/1000Mbps LAN Smart menedzselhető asztali
Technikai Specifikáció, műszaki Info :
8-port Pure-Gigabit Smart Switch, 8 10/100/1000Mbps RJ45 ports, Tag-based VLAN, STP/RSTP/MSTP, IGMP V1/V2/V3 Snooping, DHCP Filtering, 802.1P Qos, Rate Limiting, Voice VLAN, Port Trunking, LACP, Port Mirroring, SNMP, RMON
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Interface
8 10/100/1000Mbps RJ45 Ports
(Auto-Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
Dimensions (W X D X H)
8.2* 4.9* 1.0 in. (209* 126* 26mm)
Fan Quantity
Fanless
Power Consumption
Maximum: 6.42W (220V/50Hz)
Power Supply
100~240VAC, 50/60Hz
PERFORMANCE
Bandwidth/Backplane
16Gbps
MAC Address Table
8k
Packet Forwarding Rate
11.9Mpps
Jumbo Frame
9216 Bytes
SOFTWARE FEATURES
Quality of Service
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
L2 Features
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups,
containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control
VLAN
Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List
L2~L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based
Security
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown unicast Storm Control
Management
Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
