PoE splitter
Technikai Specifikáció, műszaki Info :

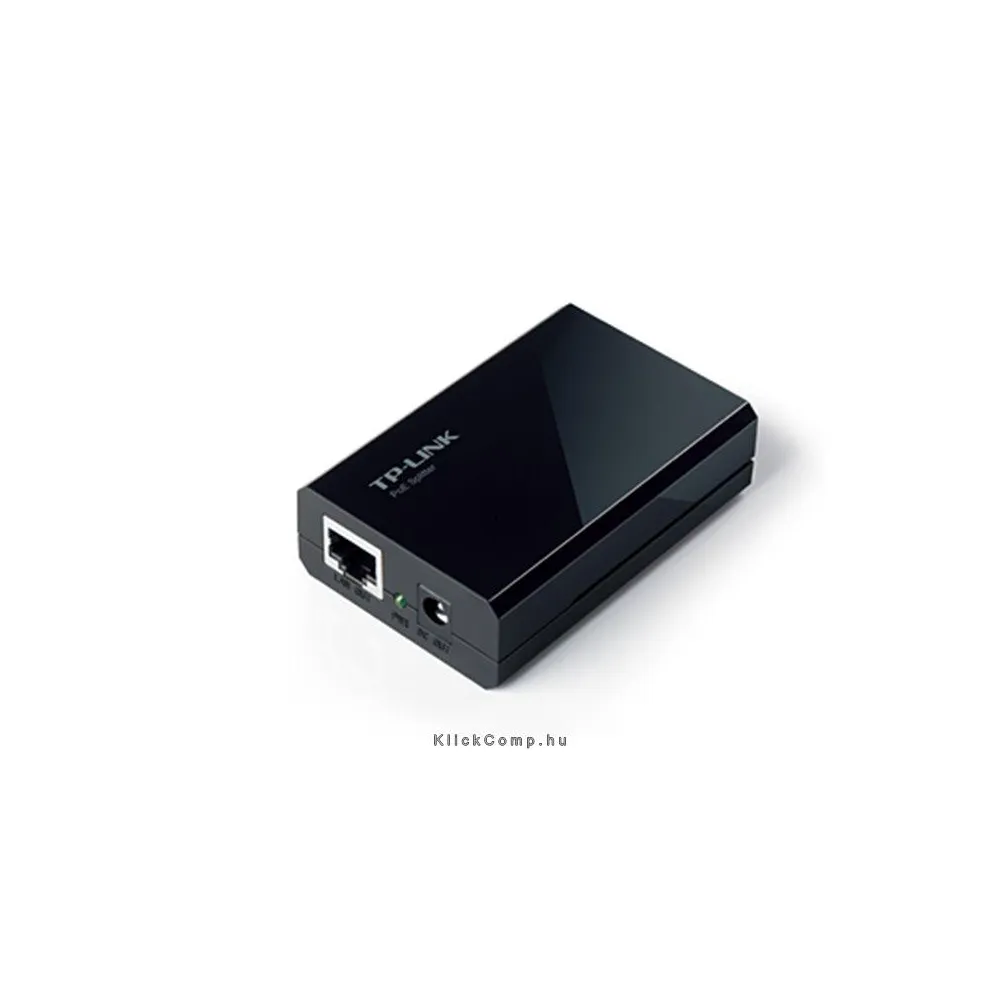

TP-LINK TL-POE10R adapter, IEEE 802.3af compliant, 100 méterig, Gigabit speed support, Optional 12V DC 9V DC or 5V DC power supply, Plug-and-Play
Basic Function
Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply
Interface
2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
LED Indicator
PWR
Dimensions ( W x D x H )
3.2*2.1*0.9 in.(80.8*54*24 mm)
Power Supply
12VDC 1A, 9VDC 1A, 5VDC 2A
